7Cs Analyzer, 7Cs Analyzer Service API
7Cs Analyzer is a desktop application used for validating S-57 and S-100 datasets. It provides data producers with the confidence that their datasets comply with the relevant IHO standards.
The tool offers seamless integration with the new S-100 Data Management and Validation System, SDMS. SDMS provides efficient workflow management to the data validation procedure using 7Cs Analyzer.
The software is based on our latest ECDIS Kernel technology, called Nautilus. Therefore we consider it to be propelled by Nautilus.
To improve automation of the validation process, customers can integrate the 7Cs Analyzer validation engine into their existing S-57 / S-10x processing workflows, by means of the new 7Cs Analyzer Service API.
7Cs Analyzer was developed in cooperation with Nautical Dimensions, Australia.

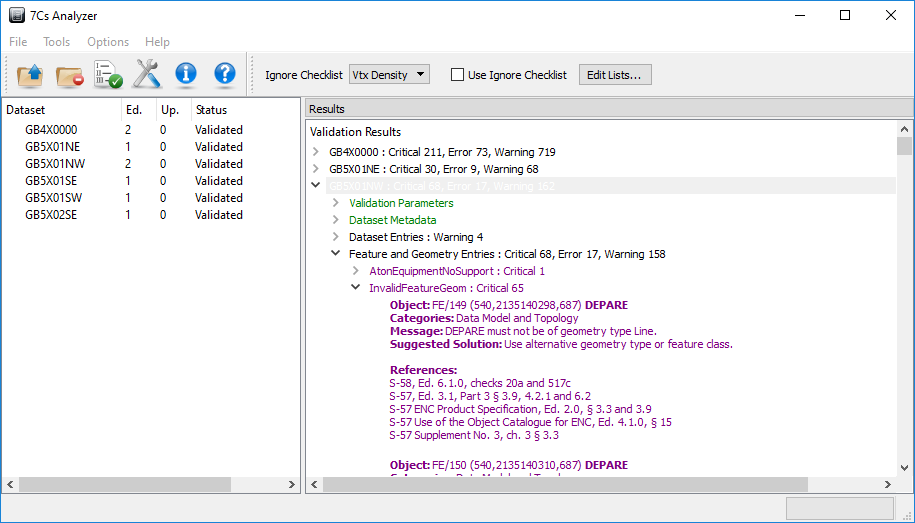

7Cs Analyzer desktop application
S-101 / S-102 cross-product validation
Product Specifications and Related Standards Supported:
- IHO S-100 Universal Hydrographic Data Model (Edition 5.2.0, June 2024)
- IHO Publication S-101 Edition 1.1.0, 1.2.0, 2.0.0
- IHO Publication S-102 Edition 2.1.0, 2.2.0
- IHO S-57 Transfer Standard for Digital Hydrographic Data, Edition 3.1
- S-57 ENC Product Specification, Edition 2.0
- S-65 Annex A, High Density (HD) ENC Production and Maintenance Guidance (Edition 1.0.0, January 2020)
- S-57 APPENDIX B.1 Annex A - Use of the Object Catalogue for ENC, Edition 4.3.0
- IHO S-58 ENC Validation Checks, Edition 8.0.0 (June 2024)
- Product Specifications for Inland ENCs, Editions 2.1, 2.2, 2.3, 2.4, 2.5
- Recommended Inland ENC Validation Checks 2.4, 2.5
- bENC/bIENC 1.0
- AML 1.0, 2.1, 3.0
Product Highlights:
- Validation of S-57 and S-101 nautical chart products
- Comprehensive workflow management via S-100 Data Management System
- S-101 / S-102 cross-product validation
- Also available as REST API for efficient automation and easy integration
- Compliant with latest edition of IHO S-58 ENC Validation Checks
- Compliant with Recommended Inland ENC Validation Checks
- Advanced editor for user-defined custom checks and definition of checks that users choose to ignore
- Option to export validation results in shape file format for use in 3rd party production software
- Verified against the new IHO S-58 Critical Test Datasets. Every test case presented by these test datasets has been passed.
- Horizontal-Vertical Consistency Module
- Sophisticated display module for in-depth error review
- Also available as REST API for efficient automation and easy integration
Integration of the 7Cs Analyzer Service API into an existing workflow
